Floorplan - 2010 Jayco Eagle 371RLQS
1 of 1
+1-
Sleeps 6
-
4 Slides
-
39ft Long
-
11,715 lbs
-
Coffee, Almond & Willow

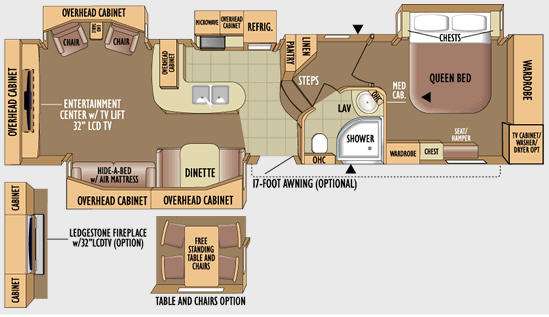

371RLQS Floorplan
371RLQS Floorplan
Specifications
Specifications
| Sleeps | 6 | Slides | 4 |
| Length | 39 ft 4 in | Ext Height | 13 ft 4 in |
| Int Height | 6 ft 5 in | Interior Color | Coffee, Almond & Willow |
| Hitch Weight | 2295 lbs | GVWR | 15500 lbs |
| Dry Weight | 11715 lbs | Cargo Capacity | 3785 lbs |
| Fresh Water Capacity | 87 gals | Grey Water Capacity | 87 gals |
| Black Water Capacity | 52 gals | Tire Size | 16" |
| VIN | 1UJCJ0BU0A1LN0055 |
Description
Description
Quad Slide Eagle FW by Jayco, Rear Living Area, Ent. Center w/TV Lift, 32" LCD TV or Opt. Ledgestone Fireplace w/32"LCDTV w/Dbl. Cabinets, 2 Lounge Chairs w/End Table Slide, Hide-A-Bed w/Air Mattress/Dinette Slide or Opt. Free Standing Table and Chairs, Dbl. Kit. Sink, Microwave/3-Burner Range/Refrig. Slide, Pantry, Linen, Step Up To Bed/Bathroom, Toilet, Lav., Corner Shower, Queen Bed w/Chests Slide, Wardrobe, Chest, Seat/Hamper, TV Cab. or Washer/Dryer Opt., Wardrobe, 17' Awning, & Much More!
Features
Features
Standard Features (2010)
Fifth Wheels
Customer Value Package
- Water purifier
- Skylight in tub/shower
- Bathroom power vent
- Security lights (2)
- Microwave oven with carousel
- Floor-mounted safe
- Foldable, exterior grab handle
- Multi-Media Premium Sound System™ AM/FM/CD/DVD stereo with MP3 input jack
- Deluxe pillowtop mattress
- Carefree® Travel'r 12 volt electric patio awning
- 15,000 BTU A/C with louvered and directional ceiling vents
- 12-gal. gas/electric DSI auto-ignition water heater
- Vacuum-bonded 5" crowned laminated roof with R-21 Insulation
Standard Heat, Power & Water Equipment
- Uni-Dock™ utility center, heated and enclosed
- A/C Chillgrille™
- Black holding tank sprayer
- Outside shower
- In-floor ducted heating
- Auto-ignition furnace with wall thermostat
- 120V G.F.C.I. protected exterior receptacle
- 50-amp power cord
- 12V demand water pump
- 12V electrical system with deluxe 120V 80-amp power converter
- Hook-up for city water
- Systems monitor panel
- Water heater bypass system
- Water system winterization kit
- Double 30-lb. propane bottles with regulator
- Battery box for two batteries
- ABS holding tanks
- Rotocast fresh water holding tanks
Standard Kitchen Equipment
- Deep storage drawers under booth dinette
- Decorative wood spindles on base cabinets
- Antique brass high-rise faucet
- Extra large picture window at dinette
- Bi-fold cover for range
- Range hood with light and exhaust fan
- 3-burner range with 9,000-BTU SuperBurner™ and piezo igniter
- Oversized 21" oven
- 8 cu. ft. flush-mount refrigerator with double door
- Color-coordinated countertops
- Sink cover/cutting board (1)
- Deep residential-style sink
- Dream Dinette™ mechanism, raises and lowers dinette table top
- Sponge holder under sink
Standard Exterior Equipment
- Front jacks with quick-release pins
- Outdoor media center
- Roof ladder
- Big Easy™ entrance step with 10" deep treads
- Spare tire with carrier
- Rain guttering, molded with drip spouts
- Galvanized steel wheel wells
- Chrome hub caps
- MOR/ryde® CRE 3,000 axle equalizer
- Baggage doors, lockable, insulated and radius-cornered with heavy-duty grab handles
- Electric-powered front jacks
- Screened egress bunk windows
- Bumper with drain hose carrier and end caps
- White-framed radius-cornered fiberglass main entry door
- 12V hitch light
- 16" radial tires
- E-Z lube® axles
- Rear stabilizer jacks (2)
- Prep for outside grill
- Amber patio light with inside switch
- Exterior speakers, high-output marine grade (2)
- Stor-Galore™ basement storage
- Painted bottom radius skirting
- Torq-N-Go™ wheel nuts
- Dexter® Nev-R-Adjust™ brakes
Standard Safety Equipment
- Propane/carbon monoxide alarm
- Tinted safety-glass windows
- Egress window
- Breakaway switch
- Smoke alarm
- Deadbolt lock on entrance door
- Fire extinguisher
Standard Interior Equipment
- Roof-mounted antenna for radio
- Wallpaper border
- 32" LCD HDTV in living area
- Ceiling fan
- Arched step treads into bathroom
- Residential trim package throughout
- Transom window with wood trim above main slideout room
- Hardwood message center (select models)
- Swivel rocker(s) (select models)
- Solid hardwood interior grab handle for main entrance door
- Overhead cabinets in slideout room
- Ventilating windows on slideout end walls
- Antique brass lighting at sofa and dinette
- Crank-up HDTV antenna with signal booster
- Residential furniture, designed and made by Jayco®
- Pleated day/night shades throughout
- Trackless carpeting with padding
- Fabric-covered box valances with lambrequin legs
- Hide-a-bed sofa (air mattress)
- High-intensity 12V lighting package
- Antique brass cabinet hardware
- Free-standing end table
- Cable and satellite TV prepped
- Cabinet door hinges, hidden throughout
- Ball bearing drawer guides 75-lb. capacity with full-drawer extension
Standard Bedroom Equipment
- Dresser lamp
- Decorative headboard
- Accordion door to bedroom (select models)
- TV cabinet (select models)
- Under-bed storage, bed lifts easily on gas struts
- Coordinated, quilted bedspread
- Laundry hamper
Standard Bathroom Equipment
- Vinyl flooring
- Towel ring
- Toilet paper holder
- Vanity light fixture
- Residential 6-panel passage door
- Thetford porcelain toilet with foot flush
- Radius-glass shower door
- Switches for all lights
- Towel holder
- Medicine cabinet with mirror
- ABS tub/shower surround
- Large sink in bathroom
Standard Construction Features
- Cabinetry crafted with screwed-stile construction
- 5/8" tongue-and-groove plywood main floor decking
- Frame prepped for bike rack/cargo tray
- 2"x3" longitudinal floor studs placed on 16" centers
- Electric-powered slideout
- FRP smooth fiberglass sidewall exteriors
- Aerodynamic wrap-around front fiberglass cap
- Pin box, long
- Poly Flex one piece moisture barrier underbelly covering
- Seamless one-piece rubber roof
- TuffShell vacuum-bonded laminated sidewalls
- Welded tubular aluminum sidewall framework
- Bead-foam insulation in sidewalls and roof
- Platforms for dinette, bed and bunks are constructed for 1/2" plywood
- Heated and enclosed fresh water tank and holding tanks
- R-21 insulation in roof, R-9 in sidewalls, R-24 in floor and underbelly, R-15 in slideout floors
- I-Class cambered structural steel I-beam frame
- Reflective foil insulation in slideout floors
- Polar Barrier insulation package
- TuffShell vacuum-bonded 5" crowned laminated roof
- Reflective foil insulation in main floor
- Fully-decked roof with 1/4" plywood
Premier Interior Package
- Burnished hardwood slideout fascia boards
- Corian hi-gloss kitchen countertop with sink cover inserts
- Upgraded hide-a-bed sofa with air mattress
- Upgraded bedding package
- Stainless-steel under-mount kitchen sink
- Stainless-steel oven with stainless range top and cover
- Rustic plank wood-grain vinyl flooring in kitchen and bath
- Recessed halogen ceiling lights
- Power lift vent in living room and/or rear bedroom
- Nickel single-lever kitchen faucet with pull-out sprayer
- Cherry-stained, burnished cabinetry
Travel Trailer
Standard Exterior Equipment
- 15" radial tires
- Baggage doors, lockable, insulated and radius-cornered with heavy-duty grab handles
- Bumper with drain hose carrier and end caps
- Chrome hub caps
- Cover for propane bottle made of molded ABS
- Diamond-plated panel on front
- Screened egress bunk windows
- E-Z Lube axles
- Front window includes fiberglass stone guard (select models)
- Galvanized steel wheel wells
- Amber patio light with inside switch
- Rain guttering, molded with drip spouts
- Stabilizer jacks (2 pair)
- Big Easy entrance step with 10" deep treads
- Spare tire with carrier
- MOR/ryde CRE 3,000 axle equalizer
- Painted bottom radius skirting
- Exterior speakers, high-output marine grade (2)
- Pass-through storage compartment
- MaxiStor (select models)
- Prep for outside grill
- White-framed radius-cornered fiberglass main entry door
- 2-5/16" hitch coupler
- ABS fender skirt
- Dexter Nev-R-Adjust brakes
- Foldable, exterior grab handle
- Torq-N-Go wheel nuts
Standard Safety Equipment
- Breakaway switch
- Dual hitch safety chains
- Fire extinguisher
- Deadbolt lock on entrance door
- Egress window
- Smoke alarm
- Tinted safety-glass windows
- Propane/carbon monoxide alarm
Standard Heat, Power & Water Equipment
- In-floor ducted heating
- 120V G.F.C.I. protected exterior receptacle
- 12V demand water pump
- 12V electrical system with deluxe 129V 45-amp power converter
- 30-amp power cord
- Double 30-lb. propane bottles with regulator
- Auto-ignition furnace with wall thermostat
- Hook-up for city water
- Systems monitor panel
- Outside shower
- Water system winterization kit
- A/C Chillgrille
- Black holding tank sprayer
- ABS holding tanks
- Gravity fill for water
Customer Value Package
- 13,500-BTU A/C with wall thermostat with louvered directional ceiling bents
- 10-gal gas/electric DSI auto-ignition water heater
- Carefree Travel'r 12 volt electric patio awning
- Deluxe pillowtop mattress
- Foldable, exterior grab handle
- Multi-Media Premium Sound System AM/FM/CD/DVD stereo with MP3 input jack
- Microwave oven with carousel
- Bathroom power vent
- Security lights (2)
- Skylight in tub/shower
- Water purifier
- Foldable, exterior grab handle
Standard Construction Features
- 81" ceiling height
- FRP smooth fiberglass sidewall exteriors
- Platforms for dinette, bed and bunks are constructed of 1/2" plywood
- Seamless one-piece rubber roof
- Welded tubular aluminum floor and sidewall framework
- TuffShell vacuum-bonded laminated sidewalls and floor
- Cabinetry crafted with screwed-stile construction
- Electric-powered slideout
- Poly Flex one piece moisture barrier underbelly covering
- Heated and enclosed fresh water tank and holding tanks
- 4-1/2" arched truss roof rafters with R-7 insulation
- I-Class cambered structural steel I-beam frame
- Fully-decked roof with 3/8" plywood
- Bead-foam insulation (R-7 sidewalls, R-9 in floor)
- Frame prepped for bike rack/cargo tray
- Reflective foil insulation in slideout floors
- Reflective foil insulation in roof
Standard Kitchen Equipment
- Deep storage drawers under booth dinette
- 3-burner range with 9,000 BTU SuperBurner and piezo igniter
- 8 cu. ft. flush-mount refrigerator with double door
- Bi-fold cover for range
- Sink cover/cutting board (1)
- Deep residential-style sink
- Drawer for silverware, divided for utensils
- Extra large picture window for dinette
- Oversized 21" oven
- Range hood with light and exhaust fan
- Antique nickel high-rise faucet
- Color-coordinated countertops
- Sponge holder under sink
- Dream Dinette mechanism, raises and lowers dinette table top
- Manchester Oak raised-panel refrigerator front
- Mini blind
Standard Interior Equipment
- Cable and satellite TV prepped
- Wallpaper border
- Roof-mounted antenna for radio
- Residential furniture, designed and made by Jayco
- Trackless carpeting with padding
- Crank-up HDTV antenna with signal booster
- Pleated day/night shades throughout
- Antique nickel lighting at sofa and dinette
- Fabric-covered box valances with lambrequin legs
- Manchester Oak raised-paneled doors and drawers throughout
- High-intensity 12V lighting package
- Hide-a-bed sofa (air mattress)
- Linoleum floor in entryway
- Antique nickel cabinet hardware
- Oak trim around main entrance door
- Overhead cabinetry in slideout room
- Ventilating windows on slideout end walls
- Solid hardwood interior grab handle for main entrance door
- Swivel rocker(s) (select models)
- Hardwood message center (select models)
- 32" LCD HDTV in living area
- Ball bearing drawer guides 50-lb. capacity with full-drawer extension
Standard Bathroom Equipment
- Vinyl flooring
- Towel ring
- ABS tub/shower surround
- Marine toilet with foot flush
- Medicine cabinet with mirror
- Switches for all lights
- Towel holder
- Residential 6-panel passage door
- Glass shower door (select model)
- Vanity light fixture
- Toilet paper holder
- Large sink in bathroom
Standard Bedroom Equipment
- Accordion door to bedroom (select models)
- Under-bed storage, bed lifts easily on gas struts
- Coordinated, quilted bedspread
- Large pass-through storage (select models)
- TV cabinet (select models)
- Decorative headboard
Options
Fifth Wheel
- King bed
- Fireplace with Ledgestone facade
- Washer/Dryer combination
- 2 Rocker recliners ILO 2 swivel rockers
- Thermal pane tinted safety glass windows
- 2nd 13,5000 BTU A/C in Bedroom
- 5500 Watt generator (generator prep included)
- Canadian standards
- CD Stereo in Bunk
- Customer Value Package 15,000 BTU central air; Security lights (2); Folding exterior grab handle; Bathroom power vent; Multi-Media Premium Sound System CD player w/MP3 input jack; Water purifier; Deluxe pillowtop mattress; Bath skylight; 12 gal gas/electric auto ignition water heater; Carefree electric awning; Microwave; Floor safe; Vacuum bonded 5" crowned laminated roof w/R-21 insulation
- Linoleum in living area
- Portable, outside gas grill
- Aluminum rims
- Slideout Awnings (2)
- Slideout Awnings (3)
- Slideout Awnings (4)
- Key fob remote control-Control for patio awning, slideouts, front stabilizer jacks and patio light
- Generator prep
- Satellite kit- Tripod; dish; coax cable; electronic satellite finder; installation video
- Fireplace
- Bike rack/cargo tray system
- Premier Interior Package-New Cherry stained burnished cabinetry; High gloss Corian countertop in kitchen; High gloss Corian sink covers (2); Under mount double bowl stainless steel kitchen sink; Single lever stainless kitchen pullout faucet w/sprayer; Rustic plank wood grain vinyl flooring in kitchen and bath; Stainless three-burner range top w/cover; Stainless oven; Burnished slideout hardwood fascia boards; Recessed halogen ceiling light throughout; Upgrade bedding package; Upgrade hide-a-bed sofa w/air mattress; Power lift vent in living room and/or rear bedroom
- 40" LCD HDTV ILO 32" LCD HDTV
Travel Trailer
- Satellite kit-Tripod; dish; coax cable; electronic satellite finder; installation video
- Customer Value Package-13,500 BTU central air; Security lights (2); Folding exterior grab handle; Bathroom power vent; Multi-Media Premium Sound System CD player w/MP3 input jack; Water purifier; Deluxe pillow top mattress; Bath skylight; 10 gal gas/electric auto ignition water heater; Carefree electric awning; Microwave
- Roof ladder
- Linoleum floor in living area
- Portable, outside gas grill
- Thermal pane tinted safety glass
- Canadian Standards
- Customer Value Package with 15,000 BTU central air upgrade
- Glass shower door
- 2 Rocker recliners ILO 2 swivel rocker
- Slideout awnings
- Bike rack/cargo tray system
- Aluminum Rims
See us for a complete list of features and available options.
All features and specifications are subject to change.
Favorite RVs
Save your favorite RVs as you browse. Begin with this one!
What Other Customers Are Saying
We are here to help!
Loading
Leatherstocking RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @607-433-2366 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
